180 East 88th highlights craftsmanship with a waterfall of hand-laid Kolumba brick - Facades+, Premier Conference on High-Performance Building Enclosures.

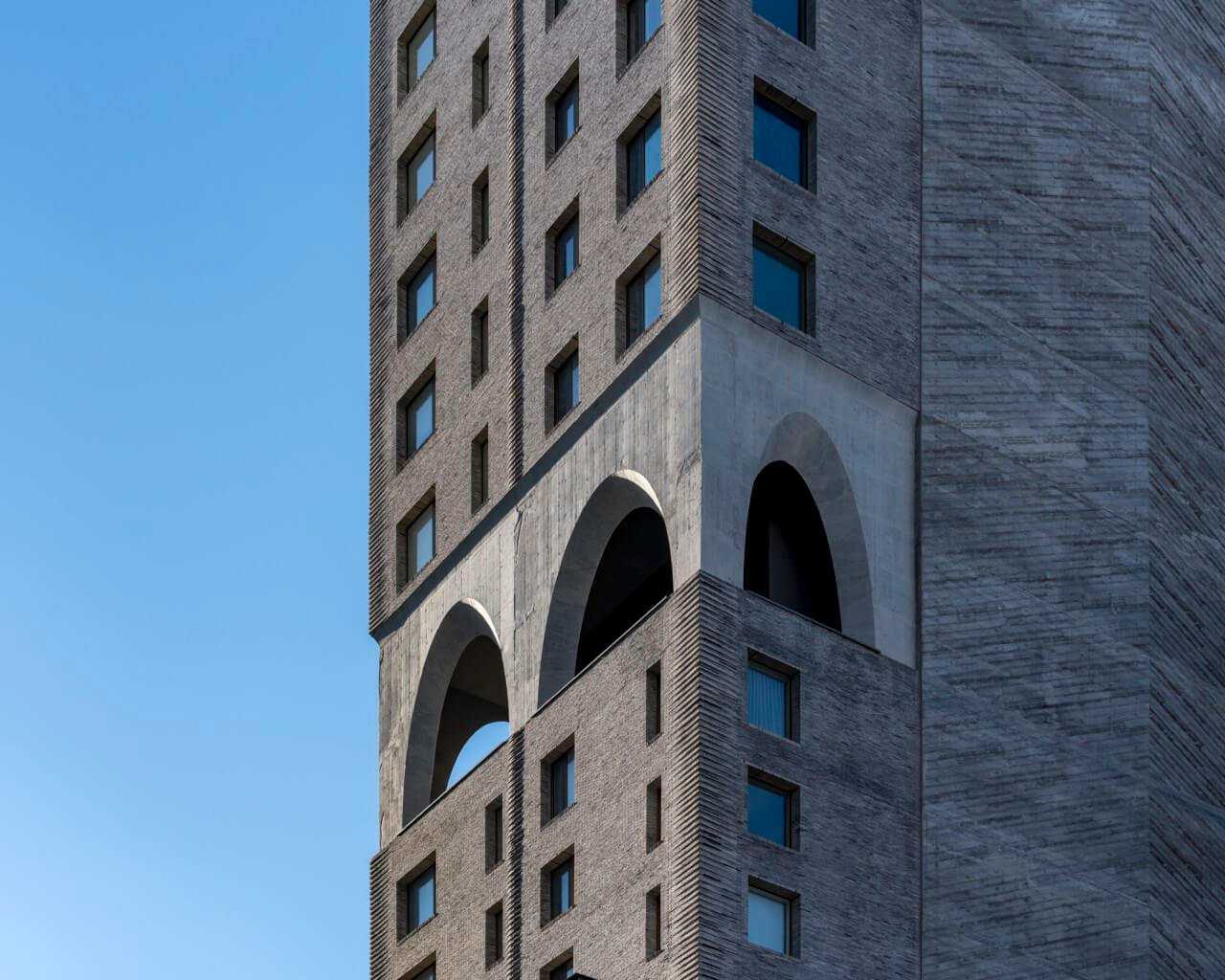

a corner shot showing the two story poured concrete arches at the mechanical, or "skyview", level and the north herringbone concrete wall — The corner of the building highlights the poured concrete arches at the 15th story, hand-laid Kolumba brick, and North concrete shear wall (Courtesy Field Condition & DDG)

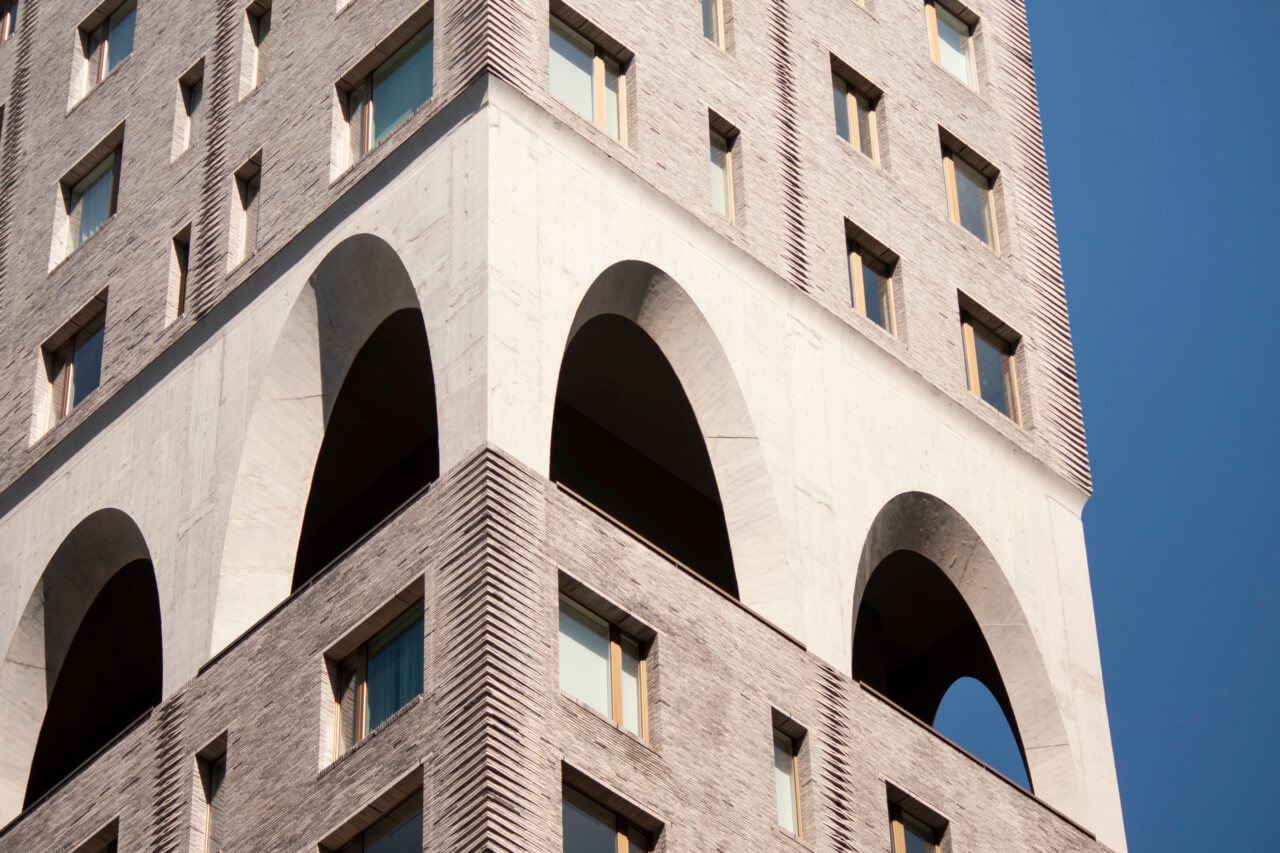

the "skyview" two story level has arches all around — (Will Femia)

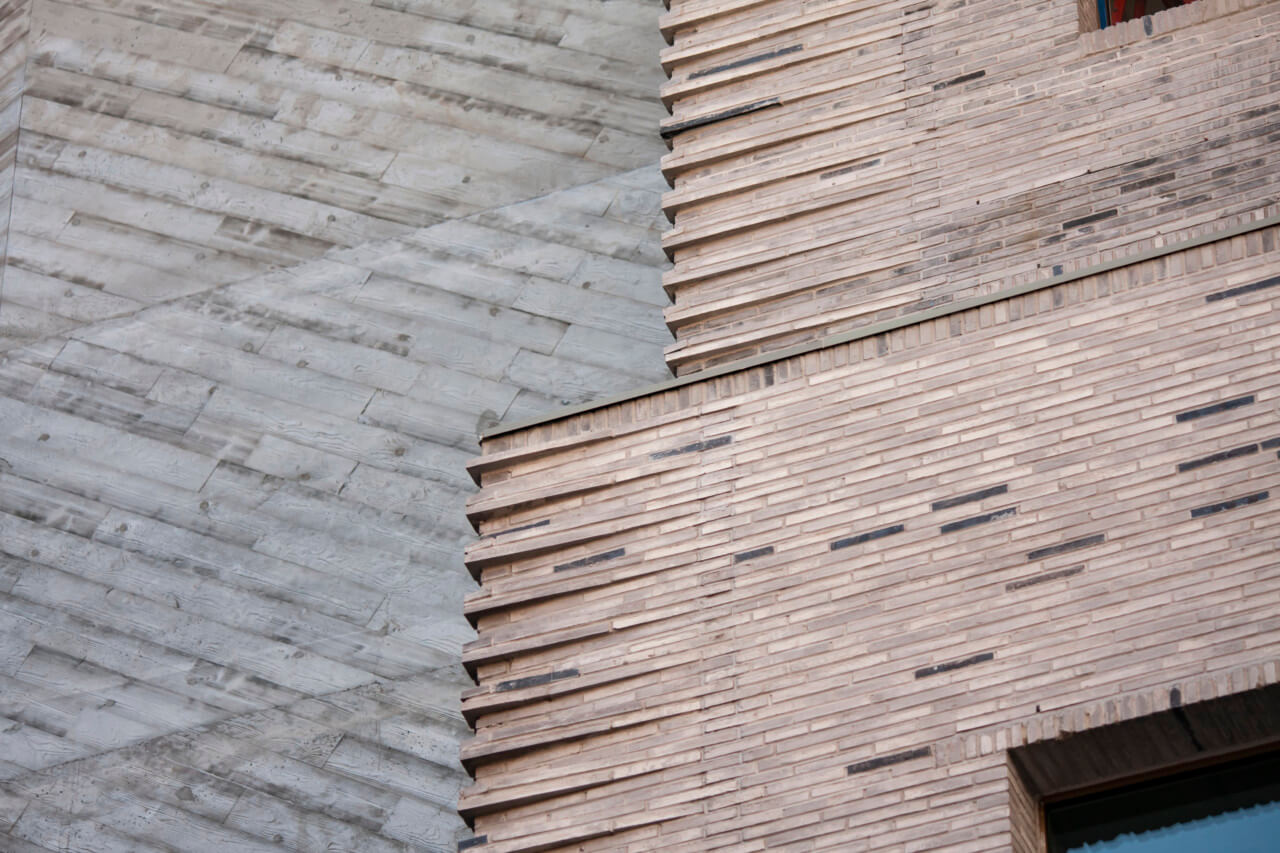

a photo of corner of the structure — The Kolumbia bricks colored mix pattern in contrast with the herringbone concrete North shear wall (Will Femia)

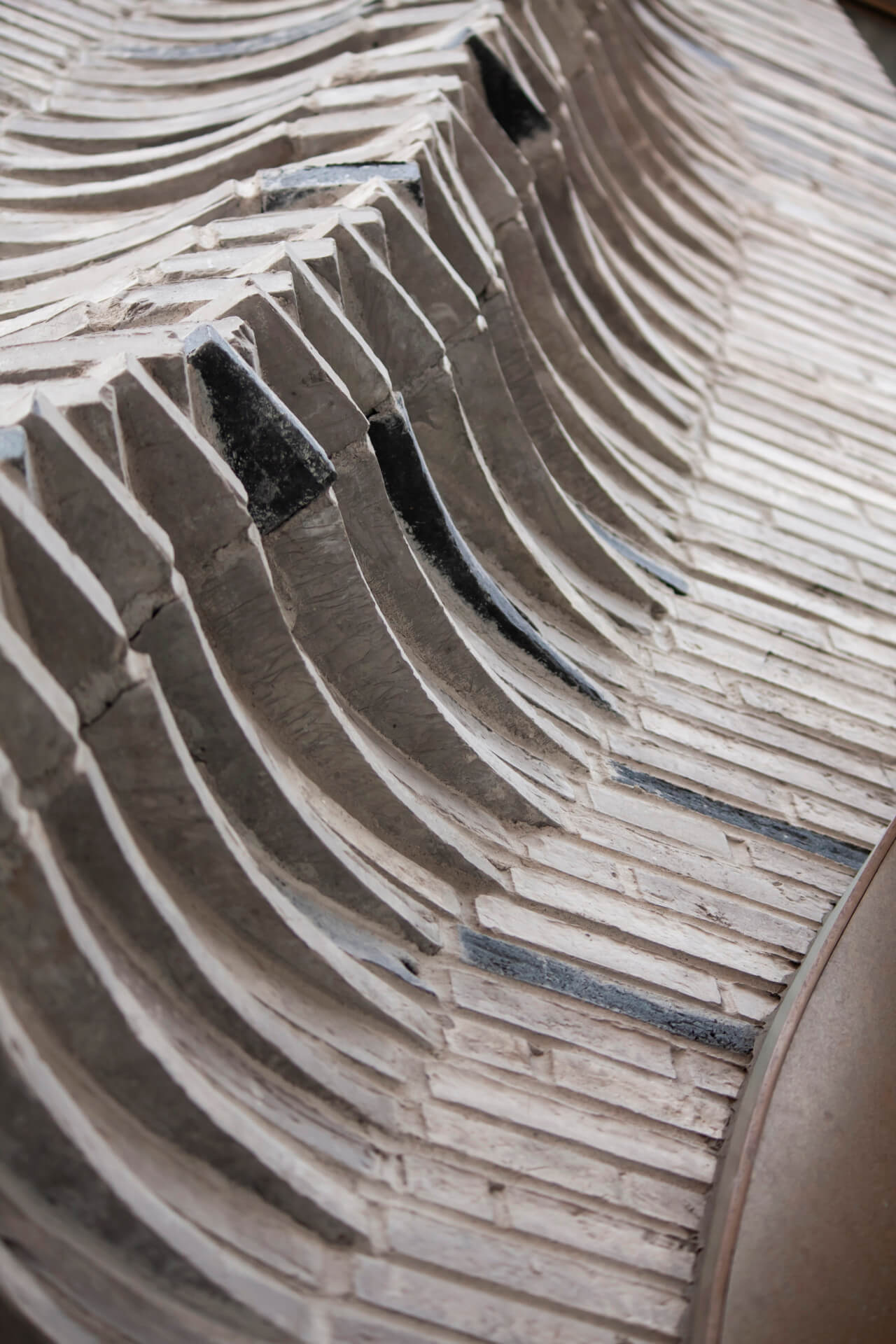

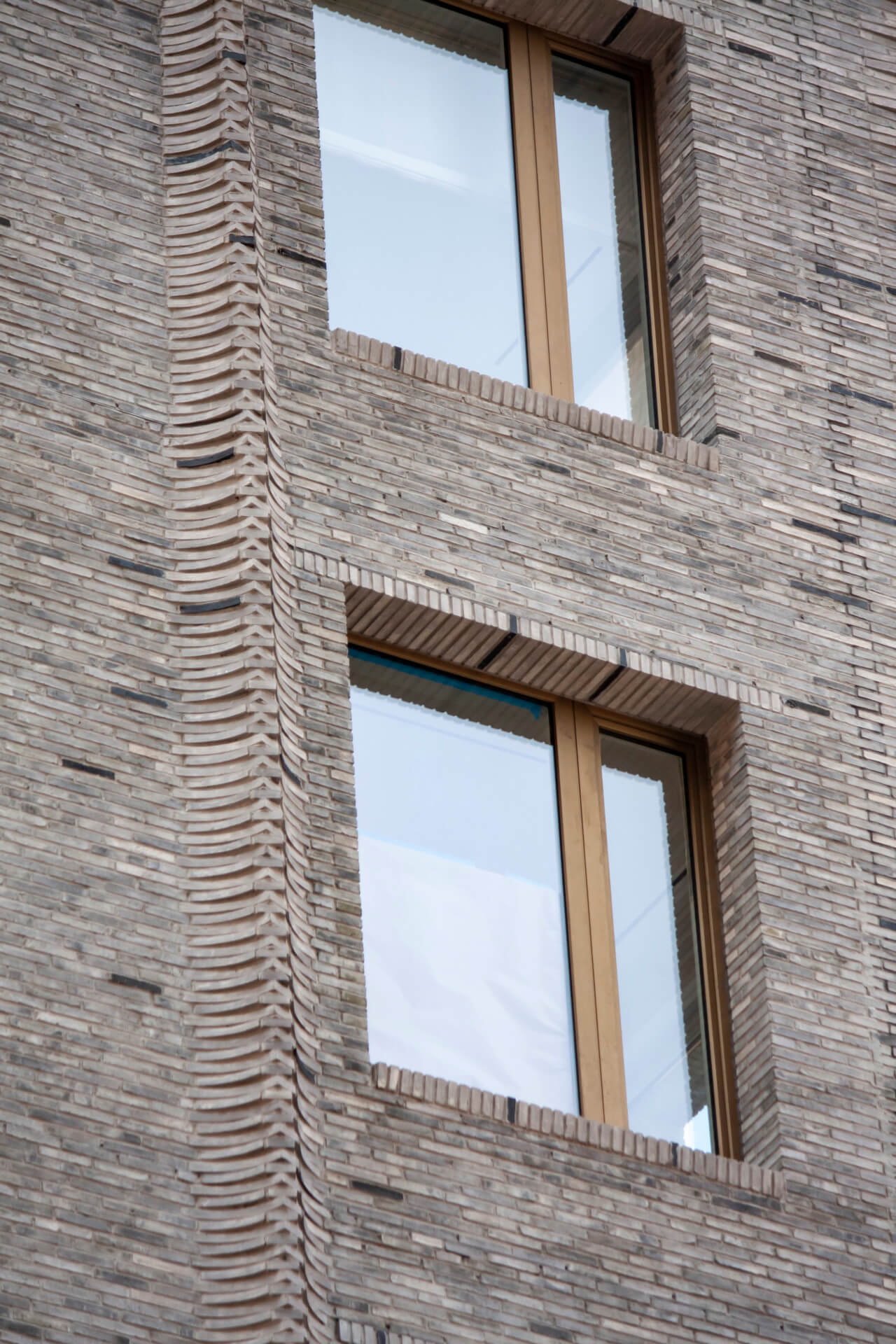

rippled facade where the brick is extruded add details to the facade — The rippled facade where the brick is extruded add detail and texture to envelope (Will Femia)

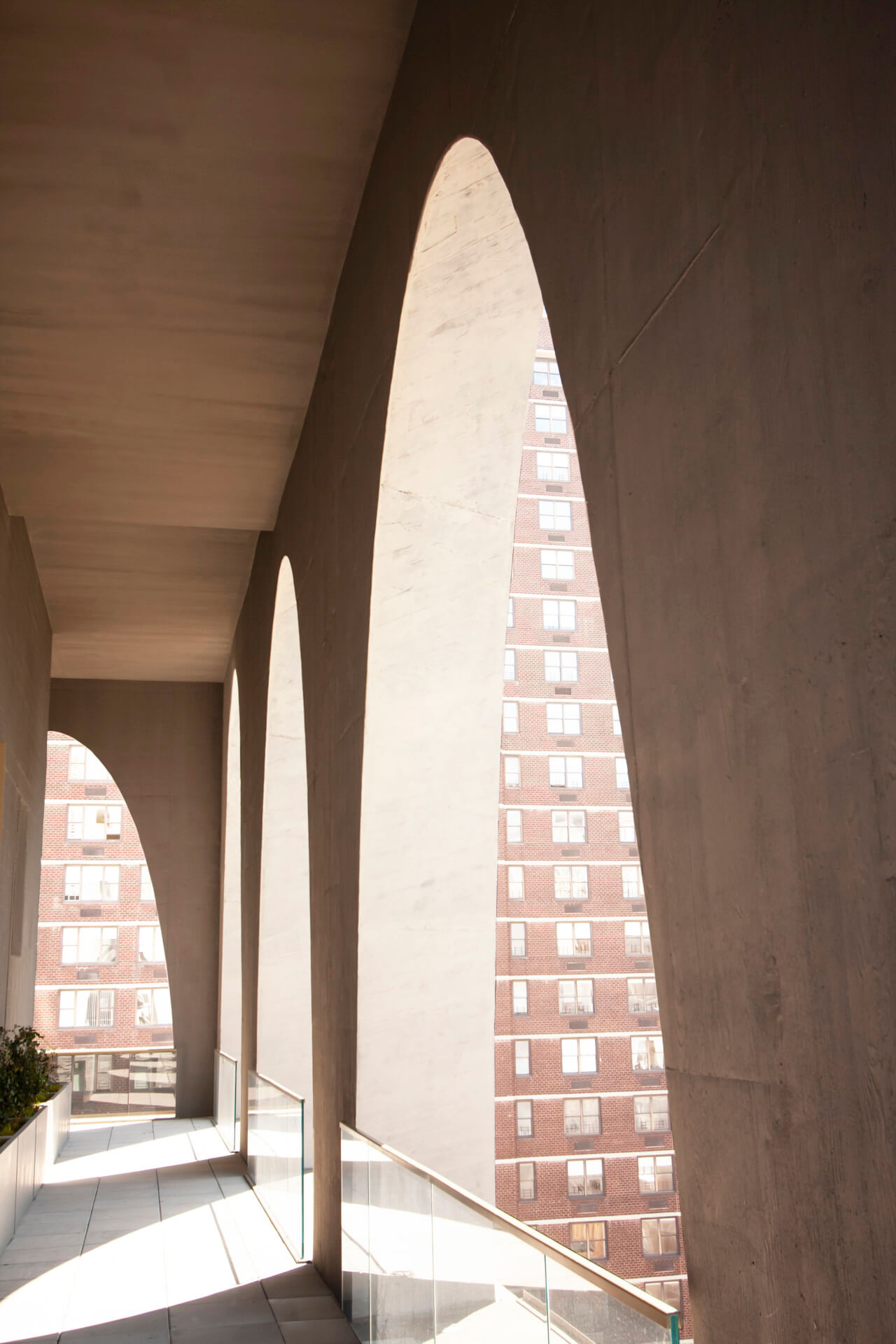

garden space at the 2 story arched levels show views out to the city and East river — The “sky garden” levels offer space for views out to the city and East River (Will Femia)

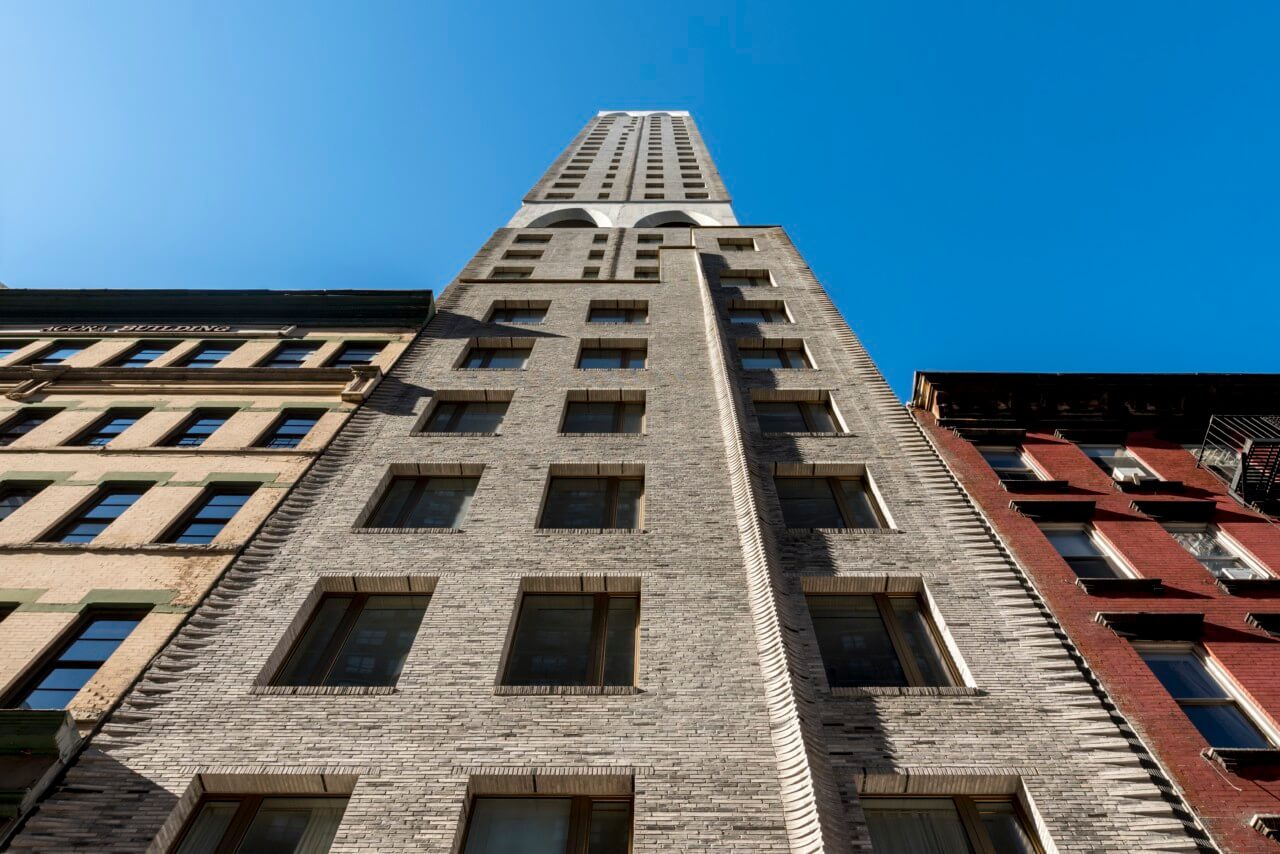

view looking up from the street of the narrow lot 50 story masonry building — View from the street showing the towering 50-story building at 180 East 88th Street (Courtesy Field Condition & DDG)

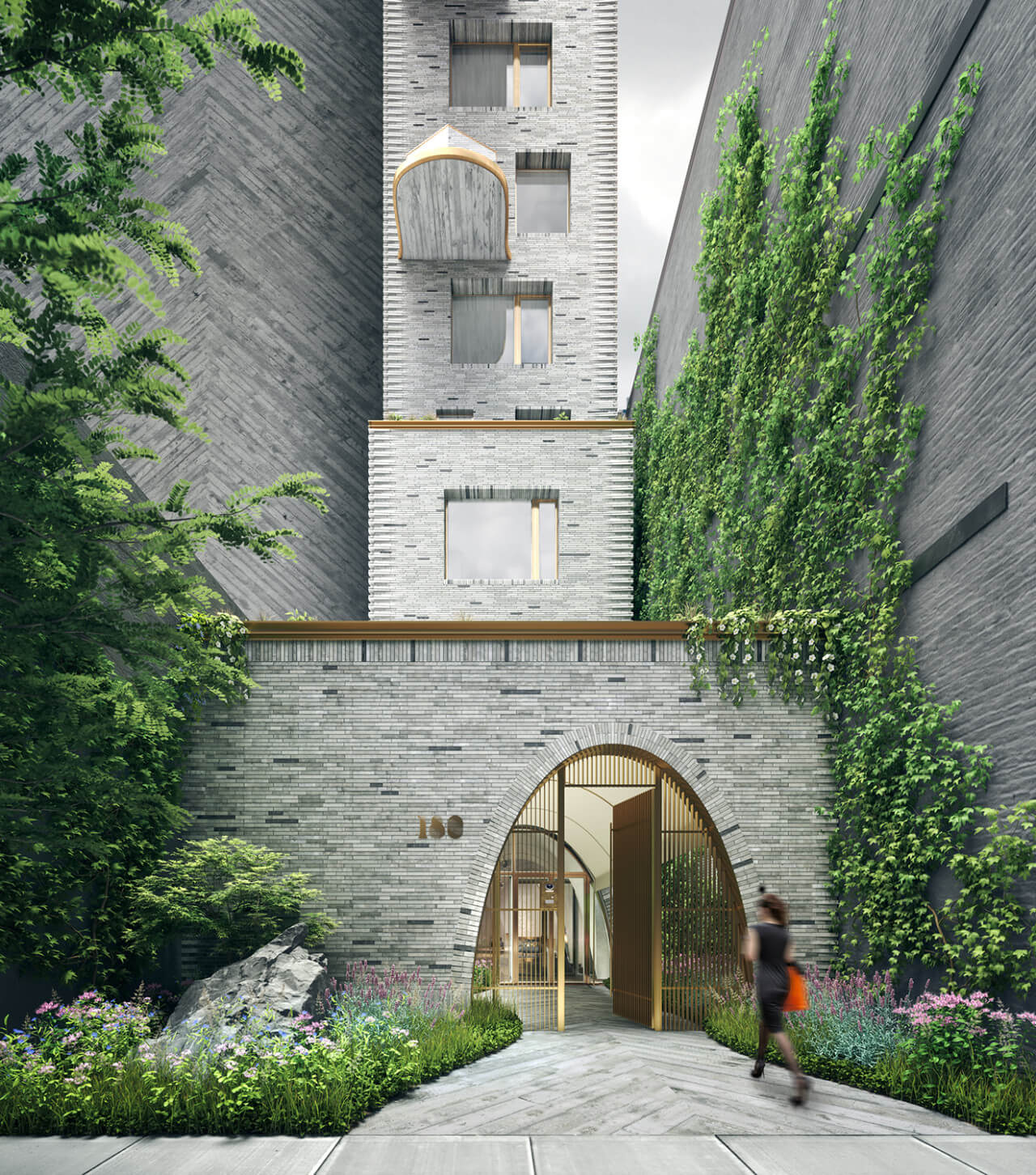

rendering of the narrow entrance with kolumba brick and gold accents to mirror the facade — Rendering of the entrance on 88th Street (Courtesy of DDG)

New York’s Upper East Side neighborhood is home to an eclectic range of scale and style largely thanks to its early history; a few blocks from the marble and limestone chateaus sprinkling Park Avenue are the brick and stone Neo-Federal and Georgian townhomes from the late 19^th century. As nesting ground for some of the most expensive housing in Manhattan, it’s no surprise that new developments continue to rise especially as zoning allows for higher density and taller envelopes.

Facade ManufacturerPetersen Tegl
ArchitectsDDG
HTO Architect
Structural EngineerSilman
Facade Consultant IBA Consultants
Construction ManagerDDG
LocationNew York
Date of Completion2021
SystemHand-laid custom brick with concrete shear wall and punched windows
ProductsWindow wall system by Reflection Window+Wall
Glass by Shanghai Yaohua Pilkington
GFRC panels by Willis Construction

Within the smaller historic district of Carnegie Hill, one of the latest additions is the 50-story residential building at 180 East 88^th designed and developed by DDG with the architect of record, HTO Architect. The textured façade features a grey waterfall of hand-laid brick from Danish family-owned manufacturer Petersen Tegl, celebrating traditional craftsmanship with a contemporary twist. Among the small gold accents from the punched window casings are two covered setbacks—starting at the 15^th and 48^th floor, respectively—that break up the facade with beveled arches and serve as garden outlooks for residents.

DDG was inspired by the boom in mid-rise masonry that occurred in the ’20s, specifically citing the work of Ralph Thomas Walker, in an effort to recoup brick detailing that has been recently lost to commoditized panel systems. A concrete sheer wall serves as structural support at the north section of the herringboned facade. The rest of the system was derived from a size and coloration percent mix from DDG which then served as a palette for the 600,000 bricks that were individually hand-laid by masons from Petersen Tegl.

“The brick-making process,” said Joe McMillan founder and CEO of DDG, “is one that has changed many times over the past 100 to 1,000 years. There are very few brick makers that still use the old process of wooden form that includes molding the clay, pushing it into the form, pushing it out, firing it into the kiln the same way it was done generations ago”. Each brick was fired by hand with coal at the same brickworks in Nybøl Nor, Denmark that was founded 230 years ago. Three shades of the Kolumba brick, ranging from light grey to an ashy black, were used, with none alike. Upon closer inspection, a thumbprint from the brick mason who created it can be seen on each individual brick. The main detailing is highlighted at the flared corners, the lintels, and the unique curve of bricks that snakes around the main entrances.

A 20-foot mockup of the brick facade was completed with punched Italian Albertini windows to endorse the tactile facade. “There’s excitement when designing the details, [such as the angle of the arches] but there’s something truly special when a building is complete. Especially knowing the building is going to be around much longer than any of us are,” added McMillan.
